How To Use MOSFET As A Switch

The Humble MOSFET

1. Unveiling the Switching Secrets of MOSFETs

Ever wondered how your computer turns things on and off so quickly? Or how that efficient power supply in your laptop manages to deliver just the right amount of juice? The answer often lies in a tiny, yet powerful component called a MOSFET — a Metal-Oxide-Semiconductor Field-Effect Transistor. Sounds intimidating, right? Don't worry, we'll break it down. At its heart, a MOSFET is an electronic switch, and a surprisingly effective one at that. It's not just about simple on/off functionality, MOSFETs offer speed, efficiency, and reliability that make them indispensable in countless applications.

Think of a MOSFET as a super-efficient light switch. Instead of you physically flipping a lever, a small voltage applied to one of its terminals (the "gate") controls whether a larger current can flow between the other two terminals (the "source" and "drain"). This ability to control a large current with a small voltage is what makes them so valuable. It's like using a tiny amount of energy to control a much larger flow, similar to how a valve works in a plumbing system, but with electrons instead of water. Pretty neat, huh?

Now, why are MOSFETs preferred over other types of switches, like, say, a mechanical relay? Well, for starters, speed. A MOSFET can switch on and off incredibly quickly — millions or even billions of times per second. Try doing that with a regular switch! Furthermore, they don't have any moving parts, which means they're far more reliable and less prone to wear and tear. Imagine clicking a light switch a billion times; it would probably break pretty quickly. A MOSFET, on the other hand, would barely break a sweat.

And let's not forget about efficiency. MOSFETs can switch with very little power loss, making them ideal for battery-powered devices where every milliampere counts. This is particularly important in modern electronics, where energy efficiency is a major concern. So, next time you're using your smartphone, remember the unsung hero inside — the MOSFET, silently switching away to keep everything running smoothly.

MOSFET Structure And Operation Principles Semiconductor SHINDENGEN

MOSFET as a Switch

2. Delving into the MOSFET Switching Mechanism

Okay, so we know MOSFETs act as switches, but how exactly do they do it? Let's peel back another layer without getting too technical. Remember that "gate" terminal we talked about? It's like a voltage-controlled valve. When a voltage is applied to the gate, it creates an electric field that allows current to flow between the source and drain. Remove the voltage, and the current stops. This on/off action is the essence of the MOSFET's switching capability.

There are two main types of MOSFETs: N-channel and P-channel. The difference lies in how they're turned on. An N-channel MOSFET typically requires a positive voltage on the gate to turn on, while a P-channel MOSFET requires a negative voltage (or zero voltage when compared to a positive source voltage). This flexibility allows engineers to design circuits that are optimized for different applications.

Think of it like this: N-channel is like a "push to open" door, and P-channel is like a "pull to open" door. Both achieve the same result — allowing passage — but they require different actions to trigger the opening. In electronic circuits, these different activation methods can be used to create more complex and efficient switching arrangements.

While the internal workings involve semiconductors and quantum mechanics (which can get pretty hairy!), the fundamental concept remains the same: a small voltage controls a larger current. This simple yet powerful principle is what makes the MOSFET such a versatile and essential component in modern electronics. And it all boils down to that core function: acting as a highly efficient, incredibly fast, and remarkably reliable switch.

MOSFET As A Switch Circuit Diagram, Analog Circuits,

Beyond the Basics

3. Exploring the Vast Landscape of MOSFET Applications

Now that we understand how MOSFETs work as switches, let's take a look at where they're used. The answer, quite frankly, is everywhere! From the smallest wearables to the largest industrial machines, MOSFETs play a crucial role in controlling and managing electrical power. Their versatility and efficiency have made them indispensable in a wide range of applications.

One of the most common applications is in power supplies. MOSFETs are used to switch the current on and off rapidly, allowing for efficient voltage regulation. This is how your computer power supply converts the high-voltage AC from the wall outlet into the lower-voltage DC that your components need. Without MOSFETs, power supplies would be much larger, heavier, and less efficient.

Another area where MOSFETs shine is in motor control. Whether it's the tiny motor in your electric toothbrush or the powerful motor in an electric vehicle, MOSFETs are used to control the speed and direction of the motor. They allow for precise and efficient control, which is essential for achieving optimal performance and extending battery life.

And let's not forget about audio amplifiers. MOSFETs can be used to amplify audio signals, providing the power needed to drive speakers. Their linear characteristics and low distortion make them well-suited for high-fidelity audio applications. So, the next time you're listening to your favorite music, remember the MOSFETs that are helping to bring the sound to life.

How Does A MOSFET Work?

Advantages of Using a MOSFET as a Switch

4. Weighing the Pros and Cons (Mostly Pros!)

Why choose a MOSFET over other types of switches? Well, the list of advantages is pretty compelling. For starters, their high switching speed allows for fast and efficient operation. They can switch on and off much faster than mechanical switches or relays, which is crucial in many applications.

Another major advantage is their low on-resistance. When a MOSFET is switched on, it offers very little resistance to the flow of current. This means that very little power is wasted as heat, making them ideal for energy-efficient applications. Think of it like a pipe with a very wide opening — water can flow through it with minimal resistance.

Furthermore, MOSFETs are incredibly reliable. With no moving parts, they're less prone to wear and tear than mechanical switches. They can withstand millions or even billions of switching cycles without failing. This makes them ideal for applications where reliability is paramount, such as in aerospace and medical equipment.

Finally, MOSFETs are relatively small and inexpensive. They can be easily integrated into integrated circuits (ICs), making them ideal for miniaturized electronic devices. Their low cost makes them accessible for a wide range of applications, from consumer electronics to industrial automation. While there are some limitations (like sensitivity to static electricity), the advantages of using MOSFETs as switches far outweigh the drawbacks in most scenarios.

Why Diode Is Connected Across IGBT And MOSFET? Body Or Intrinsic

Potential Downsides and Considerations

5. Addressing the Challenges of MOSFET Switching

While MOSFETs are generally fantastic switches, they're not without their quirks. It's essential to understand these limitations to use them effectively. One potential issue is their sensitivity to electrostatic discharge (ESD). A static shock can easily damage a MOSFET, rendering it useless. This is why it's important to handle MOSFETs with care and use proper ESD protection measures.

Another consideration is the gate drive voltage. MOSFETs require a certain voltage to be applied to the gate to turn them on. This voltage can vary depending on the specific MOSFET, and it's important to ensure that the gate drive voltage is within the specified range. Applying too much voltage can damage the MOSFET, while applying too little voltage may not fully turn it on.

Moreover, MOSFETs have a certain amount of parasitic capacitance. This capacitance can affect their switching speed and efficiency. In high-frequency applications, it's important to take this capacitance into account when designing circuits. Advanced gate driver circuits are often needed to mitigate the effects of parasitic capacitance.

Finally, MOSFETs can generate heat when they're switching, especially at high frequencies. This heat needs to be dissipated to prevent the MOSFET from overheating and failing. Heat sinks and other cooling solutions are often used to manage the heat generated by MOSFETs. So, while they're efficient, it's crucial to consider thermal management in high-power applications.

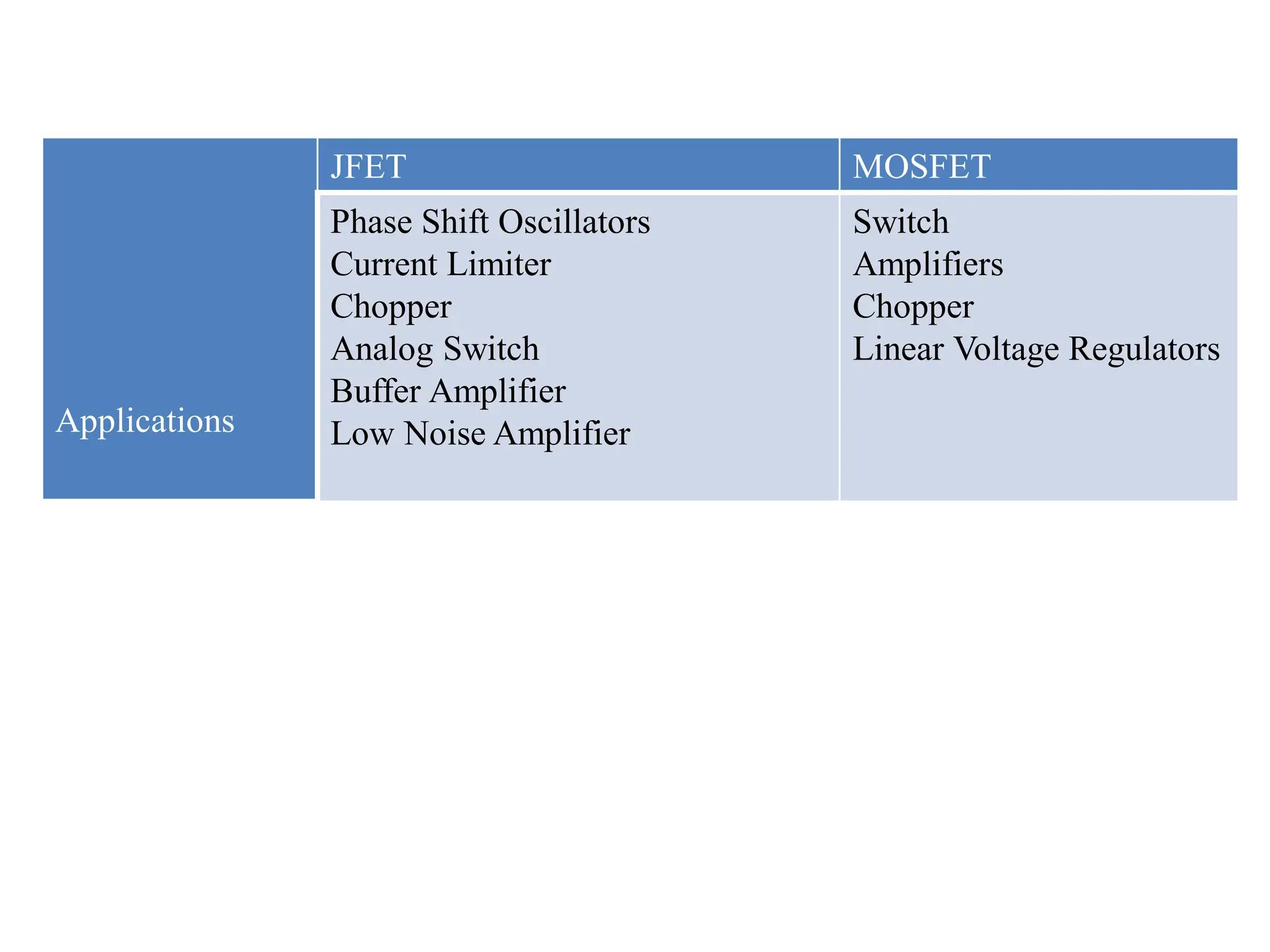

MOSFET As A Switch PPT

FAQ

6. Clearing Up Common Queries about MOSFETs

Got more questions about MOSFETs? You're not alone! Here are some of the most frequently asked questions, answered in plain English.

Q: Can a MOSFET switch AC voltage directly?

A: Not usually without additional circuitry. While MOSFETs can switch current in either direction, they are primarily DC switching devices. To switch AC, you typically need a bridge rectifier to convert the AC to DC first, or use specialized AC switches like TRIACs or back-to-back MOSFET configurations.

Q: What's the difference between a MOSFET and a transistor?

A: A MOSFET is a type of transistor — specifically, a field-effect transistor (FET). There are other types of transistors too, like bipolar junction transistors (BJTs). The key difference is how they're controlled. MOSFETs are voltage-controlled, while BJTs are current-controlled. Think of it like steering a car with the steering wheel (MOSFET) versus pushing the gas pedal (BJT).

Q: Are MOSFETs always better than mechanical relays?

A: Not always. While MOSFETs are faster, more efficient, and more reliable in many applications, mechanical relays can handle much higher voltages and currents. Relays are also electrically isolated, meaning the control circuit is completely separate from the switched circuit, providing extra safety. It all depends on the specific requirements of the application!
