Understanding Motor Control

1. What's the Big Idea Behind Motor Control?

Ever wondered what makes machines move with such precision? It's not magic, it's motor control! Think of motor control as the brain of any mechanical system that uses an electric motor. Its not just about flipping a switch to make something spin. It's about carefully managing that spin, along with a whole host of other actions, to achieve a desired outcome.

Essentially, the general purpose of motor control is to orchestrate the movement of a motor. This orchestration involves not just starting and stopping, but also carefully regulating things like speed, torque (that's the twisting force), position, and even the direction of rotation. Imagine a robotic arm delicately picking up an egg — that requires incredibly precise motor control.

Without sophisticated motor control, we'd be stuck with motors that are either full-throttle or completely off. Imagine trying to drive a car with only those two options! Motor control allows us to finely tune the performance of motors to suit a wide variety of applications, from the incredibly complex to the surprisingly simple.

Consider your washing machine. It doesnt just blindly spin. Motor control allows it to gently agitate clothes, powerfully spin them to remove water, and everything in between. It is the brain that adjusts according to the needs.

PLC Motor Control Circuit Download Scientific Diagram

Why Bother With All This Control? The Benefits Unveiled

2. So, why not just let the motor run wild?

Well, for starters, it's about efficiency. Precisely controlling a motor allows it to use only the amount of energy it needs, reducing waste and saving money. Think about a modern refrigerator — its motor carefully adjusts its speed to maintain the perfect temperature, rather than constantly running at full power.

Then there's safety. Controlled motors are predictable motors. In industrial settings, runaway motors can be extremely dangerous. Motor control systems incorporate safety features like overload protection and emergency stops to prevent accidents and protect equipment. The impact of controlled operations can be significant.

Furthermore, proper motor control extends the life of the motor itself. Running a motor at excessive speeds or under heavy loads can cause premature wear and tear. By carefully managing the motor's operation, we can ensure it lasts longer and performs reliably.

And let's not forget precision! Modern manufacturing often relies on robots and automated systems that require incredibly accurate movements. Motor control provides the necessary precision to perform tasks like assembling electronics, welding intricate structures, and even performing delicate surgeries. Without careful control, many modern inventions would be impossible.

Automatic Sequential Motor Control Circuit Power &

The Key Ingredients

3. What components make the magic happen?

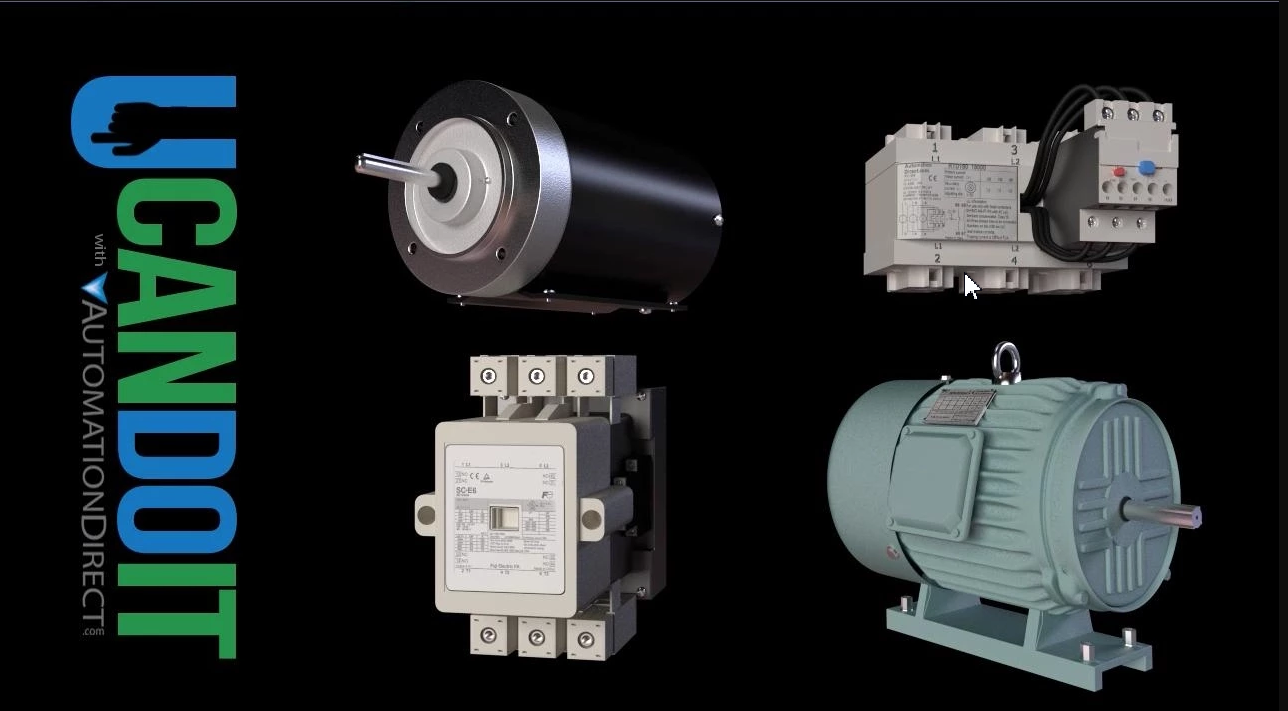

A typical motor control system isn't just a single device; it's an ecosystem of components working together. At the heart of it all is, of course, the motor itself — the thing that actually does the moving. But around that motor is a whole network of sensors, controllers, and protection devices.

Sensors are the system's eyes and ears, constantly monitoring things like motor speed, current, voltage, and temperature. This information is fed back to the controller, which is the brain of the operation. The controller uses this data to make adjustments and ensure the motor is performing as desired.

Controllers can range from simple electromechanical relays to sophisticated programmable logic controllers (PLCs) and microcontrollers. The more complex the application, the more advanced the controller needs to be. Imagine comparing the controller in a simple ceiling fan to the controller in a self-driving car — quite a difference!

Finally, protection devices like circuit breakers and fuses are there to safeguard the motor and the rest of the system from damage in case of overloads or faults. They're the unsung heroes that prevent catastrophic failures. Think of them as the system's emergency backup.

Basic Principles Of Motor Controls Precision Automation Specialists

Beyond On/Off

4. Not all controls are created equal.

Motor control isn't a one-size-fits-all solution. There are various types of motor control systems, each designed for specific applications. One common type is direct-on-line (DOL) starting, which, as the name suggests, simply applies full voltage to the motor. It's simple but can cause a surge of current.

Another type is reduced-voltage starting, which gradually increases the voltage applied to the motor, reducing the initial current surge. This is often used for larger motors to prevent stress on the electrical grid and mechanical systems. Soft starters are a common example of reduced-voltage starters.

Variable frequency drives (VFDs) are perhaps the most sophisticated type of motor control. They allow precise control of motor speed and torque by varying the frequency and voltage supplied to the motor. VFDs are widely used in applications that require precise speed control, like pumps, fans, and conveyors. VFDs are the modern standard.

And, of course, there are servo systems, which are used for highly precise positioning applications. These systems use feedback from encoders or resolvers to precisely control the motor's position, making them ideal for robotics and CNC machines. Consider your printer head, it uses these systems to make sure everything is aligned to produce a clean image.

Motor Controls Essential Components Of Automated Systems

Motor Control in the Real World

5. Where do we see this tech being used?

Motor control is everywhere! It's so pervasive that you probably interact with it multiple times a day without even realizing it. Think about your home appliances. Your refrigerator, washing machine, dishwasher, and even your electric toothbrush all rely on motor control to function properly. The functionality of the modern home depends on motor controls.

Consider elevators. They use sophisticated motor control systems to smoothly accelerate and decelerate, ensuring a comfortable ride for passengers. Or think about automated production lines in factories, where robots and conveyors are precisely controlled to assemble products with speed and accuracy. Manufacturing cannot function without these controls.

Even electric vehicles rely heavily on motor control. The motor control system is responsible for converting electrical energy from the battery into mechanical energy to drive the wheels, as well as managing regenerative braking to recapture energy during deceleration. Electric vehicles would be unable to reach the consumer market without motor controls.

From the smallest handheld devices to the largest industrial machinery, motor control is the invisible force that makes things move. It's a fundamental technology that powers our modern world and enables countless innovations. Without it, we could not advance technologically.

Motor Control Center Purpose, Classification, And Advantages

FAQ

6. Got questions? We've got answers!

Q: What happens if a motor doesn't have any motor control?

A: Without motor control, a motor would likely run at full speed until it's switched off, potentially causing damage, inefficiencies, and safety hazards. It is best to utilize motor controls at all times.

Q: Are motor control systems expensive?

A: The cost of a motor control system varies greatly depending on its complexity and features. Simple systems can be relatively inexpensive, while advanced systems with VFDs and servo controls can be quite costly. It's always important to analyze the motor and controls being purchased.

Q: Can I build my own motor control system?

A: While it's possible to build your own simple motor control systems, it's generally recommended to use commercially available systems, especially for industrial applications. These systems are designed for safety, reliability, and performance. For hobby use, DIY solutions may be acceptable.

Q: How do I troubleshoot a motor control system that isn't working?

A: Troubleshooting motor control systems can be complex and requires a good understanding of electrical circuits and control systems. It's best to consult with a qualified electrician or motor control specialist if you're not familiar with these systems. When in doubt, consult a professional.
